Icy Dock ToughArmor MB508SP-B Drive Enclosure for 5.25" - Mini-SAS HD Host Interface Internal - Black

by
ICY DOCK
PCN#
5TK439
MFG#
MB508SP-B
$245.01
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 8 x HDD Supported
  • 8 x SSD Supported
  • 8 x Total Bay

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 4 lbs.
Icy Dock ToughArmor MB508SP-B Drive Enclosure for 5.25" - Mini-SAS HD Host Interface Internal - Black
Tech Specs
Specifications

Manufacturer

Icy Dock

Manufacturer Part Number

MB508SP-B

Manufacturer Website Address

http://www.icydock.com

Brand Name

Icy Dock

Product Line

ToughArmor

Product Model

MB508SP-B

Product Name

Full Metal 8 Bay 2.5" SAS/SATA SSD & HDD Backplane Cage

Marketing Information

Introducing the ICY DOCK ToughArmor MB508SP-B 8-bay 2.5" drive cage for hard drives and SSDs, designed for high-density storage of 8x 2.5" SAS/SATA HDD/SSD from 5-15mm in 2x 5.25" CD/DVD optical drive bays, making it the densest drive cage available supporting full 15mm drives. Support for 15mm hard drives means enterprise SAS drives and high capacity drives are fully supported, which are used in applications requiring long-term reliable and fast data storage for archival and backup purposes. Two Mini-SAS HD connectors are used to connect all 8 drives, greatly reducing cable clutter over traditional SATA ports and improving reliability due to the interference reducing EMI shielding built into Mini-SAS HD cables. To further improve reliability and security, MB508SP-B uses a ruggedized full-metal construction meeting flammability requirements, as well as a large 80mm user-adjustable cooling fan to protect against drive failure from overheating.

Dense Enterprise Storage Solution

ICY DOCK's MB508SP-B packs 8x full-height SATA/SAS HDD/SSDs into just 2x 5.25" CD/DVD optical drive bays. This makes it perfect for applications requiring lots of storage using enterprise SAS hard drives, such as server and data-center PCs storing large amounts of data.

To protect against environmental damage, your drives are surrounded in a full metal chassis with full-metal trays, meeting the ruggedized flammability requirements of industrial, military, and medical applications.

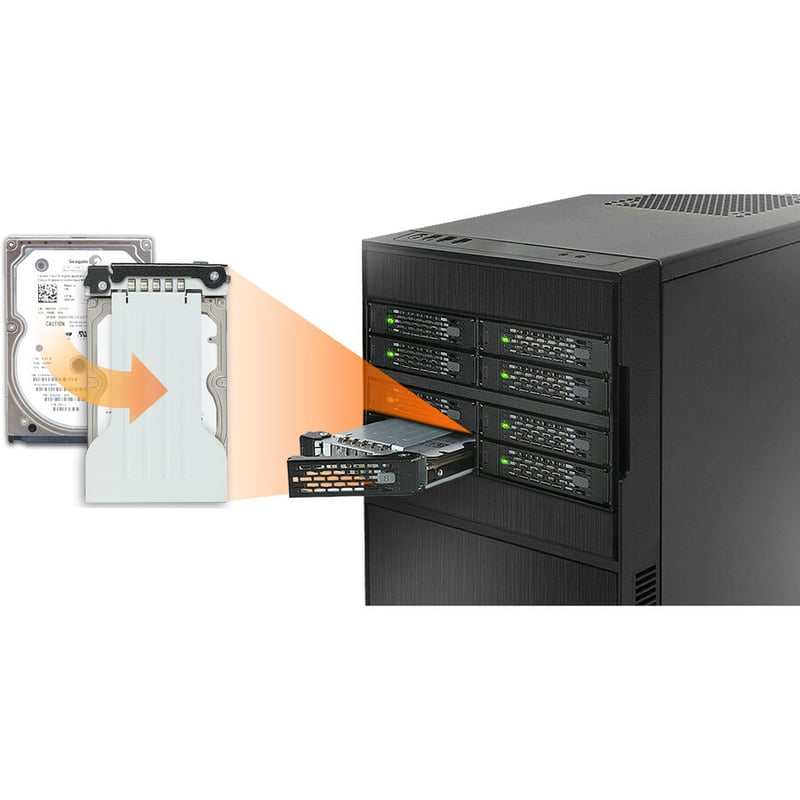

Easily Hot Swappable

Designed for applications where regular drive swap may be required, the MB508SP-B EZ slide mini drive trays are hot-swappable, to allow for drives to be added and replaced easily, without restarting the whole machine. Hot-swap allows failed drives to be replaced in seconds, without any costly downtime to the rest of the system. To ensure a long life, the internal SAS/SATA connectors are rated to support up to 10,000 swapping cycles in each bay.

Highly Compatible EZ Slide Tray System

The EZ slide mini tray system supports full-height 2.5" mechanical hard drives and solid state drives, including high capacity SATA and SAS drives. SAS drives are used in enterprise applications such as long-term archival for their long lifespan, higher reliability, and faster rotational speeds up to 15,000 RPM for fast data access. All SAS drives are supported, including Seagate Exos, HGST Ultrastar C series, and Dell, HPE, and Toshiba SAS drives.

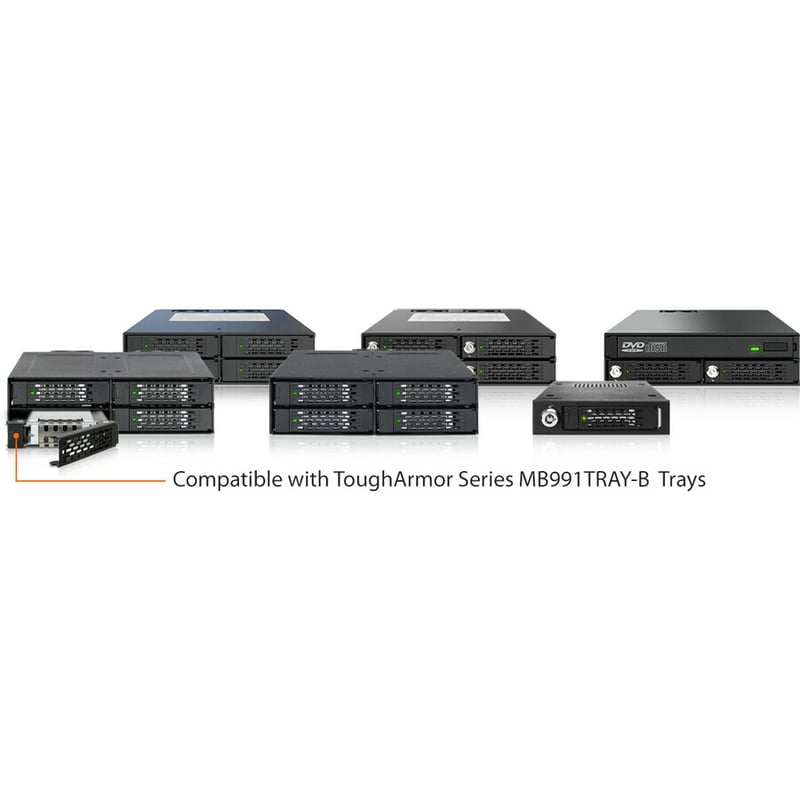

ToughArmor series trays are designed for maximum interoperability; the trays on MB508SP-B can be used with many other ToughArmor models, including the MB991 series and the MB994 series. This means drives can easily be transported and used in other systems, without having to reattach drives to another tray.

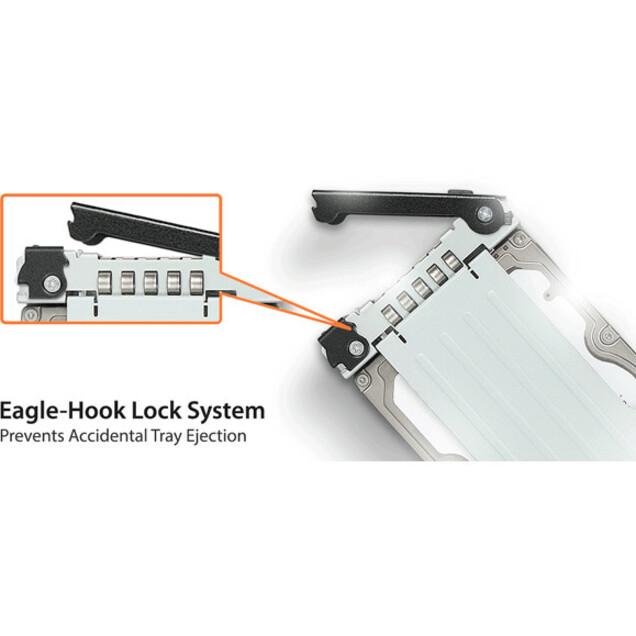

For drive security, the eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed.

Next Generation Connection Standard

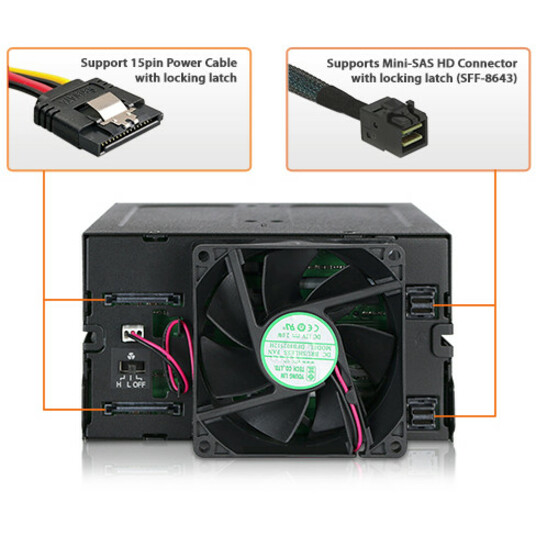

Two Mini-SAS HD (SFF-8643) ports connect all 8 drives, vastly reducing cable clutter and adding compatibility for a larger selection of RAID controller cards. Compared to SATA, Mini-SAS HD can travel further without signal degradation, keeping your data transfers clear from the static noise that can result in data loss.

Powerful Cooling

Featuring a large, powerful 80mm fan with high, low, and off settings that is designed to remove as much heat as possible from your drives rapidly. The fan works together with ventilation holes amply placed throughout the enclosure, ensuring drives run only at their optimal temperatures.

Packaged Quantity

1

Product Type

Drive Enclosure
Technical Information

Number of Hard Drives Supported

8

Number of Hard Drives Installed

No

Number of Solid State Drive Supported

8

Number of Solid State Drive Installed

No
I/O Expansions

Number of Total Expansion Bays

8

Number of 2.5" Bays

8
Network & Communication

Wireless LAN

No
Interfaces/Ports

Host Interface

Mini-SAS HD
Physical Characteristics

Product Color

Black

Product Material

Metal

Cooling Fan

Yes

Form Factor

Internal

Compatible Drive Bay Width

5.25"

Height

3.3"

Width

6.2"

Depth

5.7"

Weight (Approximate)

3.22 lb
Miscellaneous

Package Contents

  • Full Metal 8 Bay 2.5" SAS/SATA SSD & HDD Backplane Cage
  • 1 x User Manual
  • 1 x ID Plug
  • 44 x Screws

Environmentally Friendly

Yes
Warranty

Limited Warranty

3 Year
