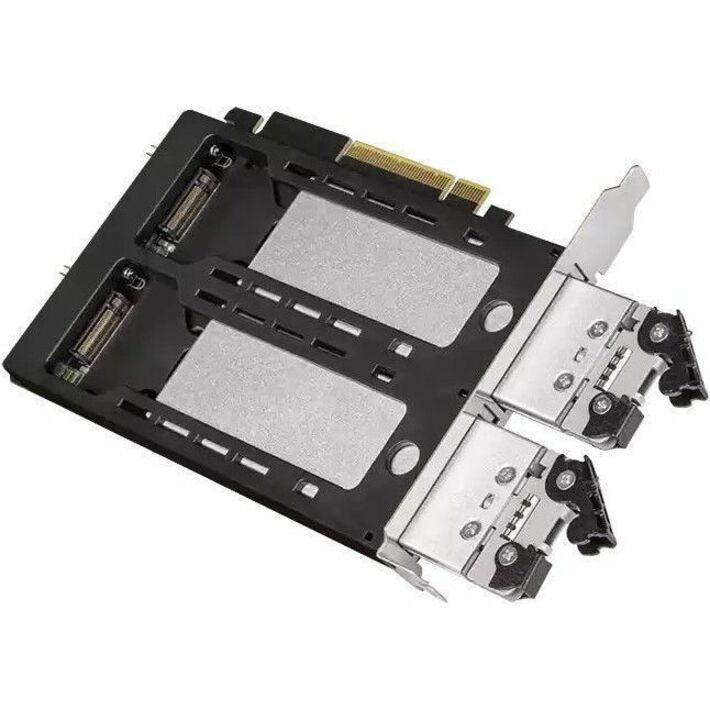

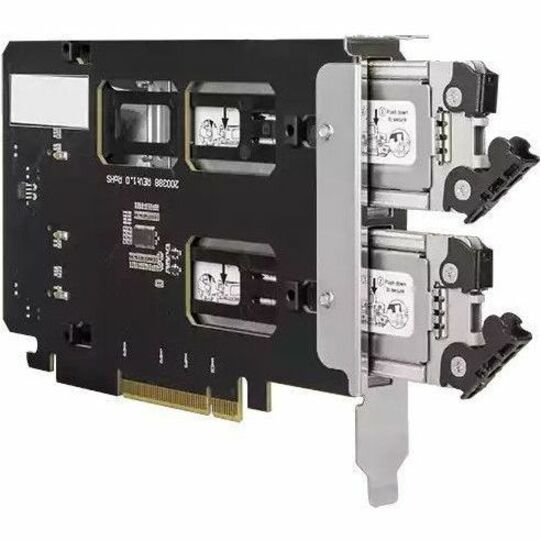

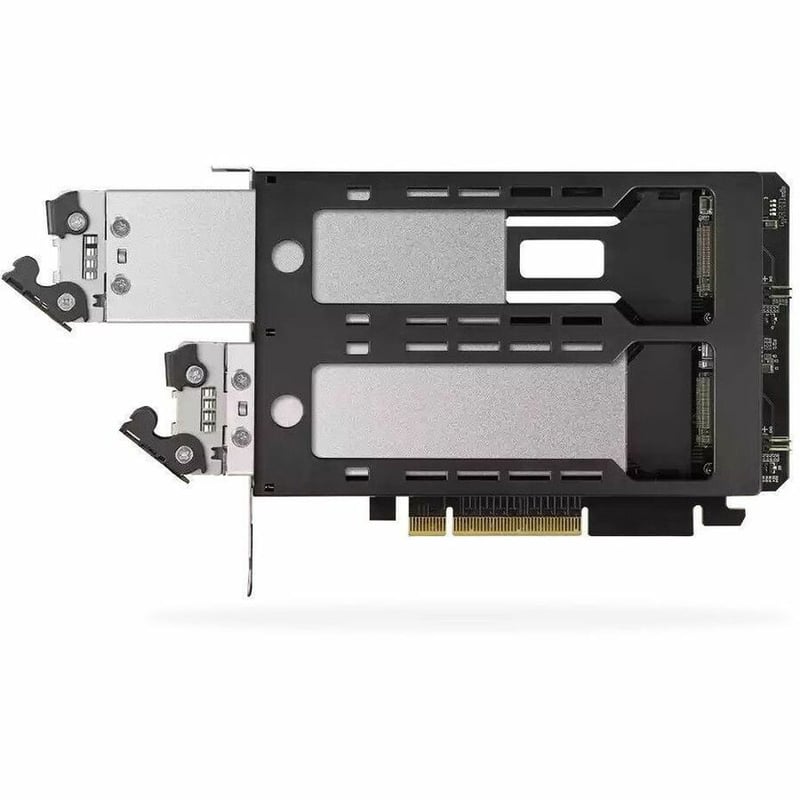

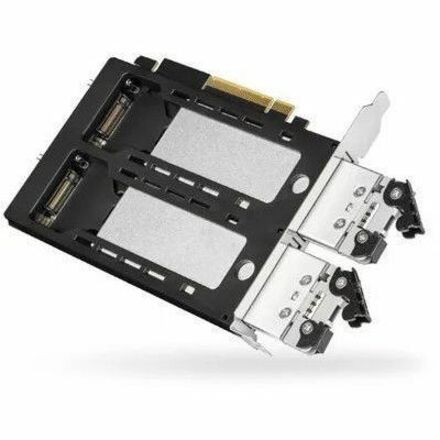

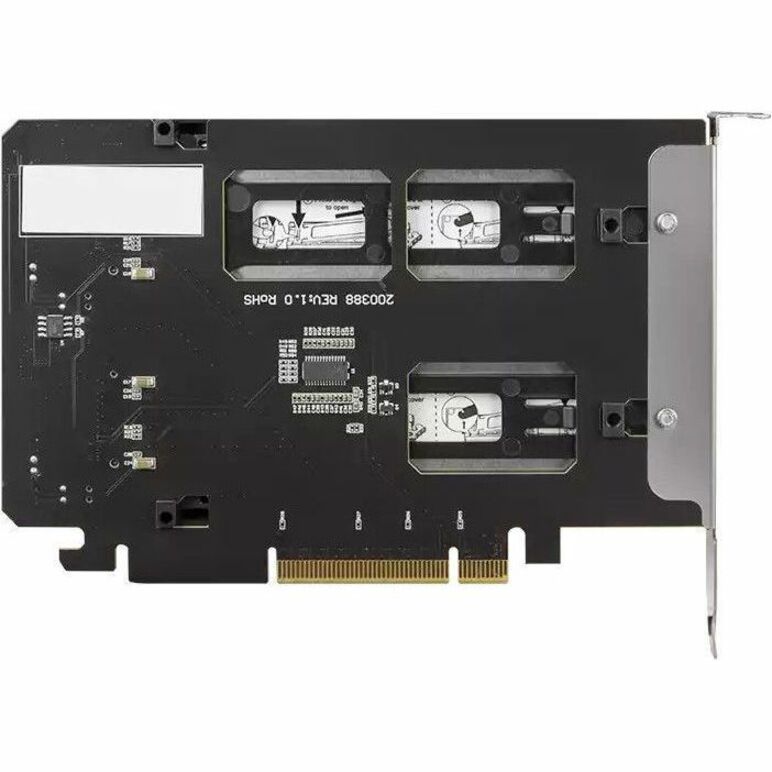

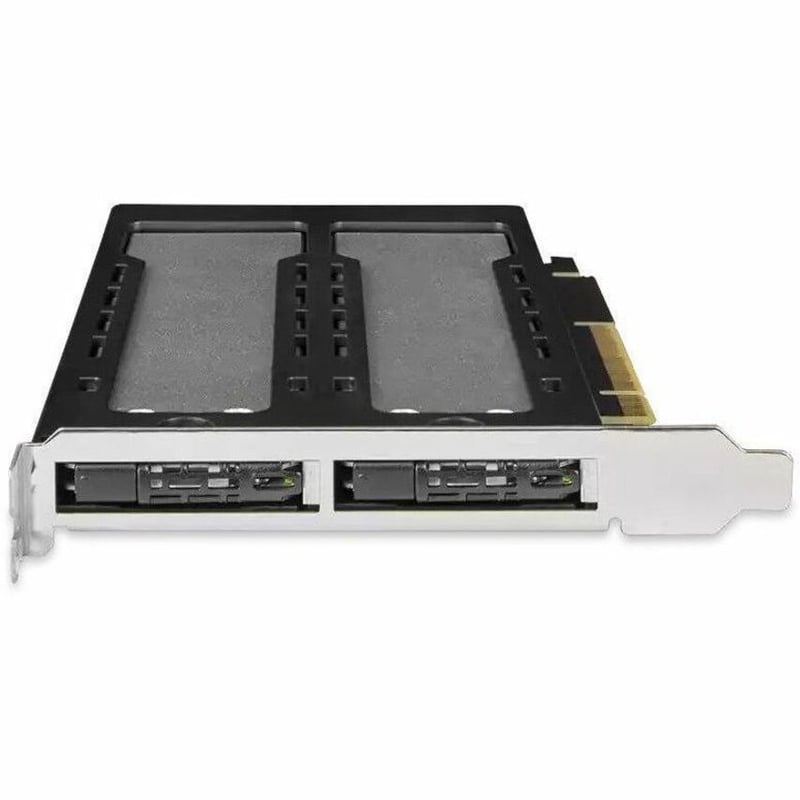

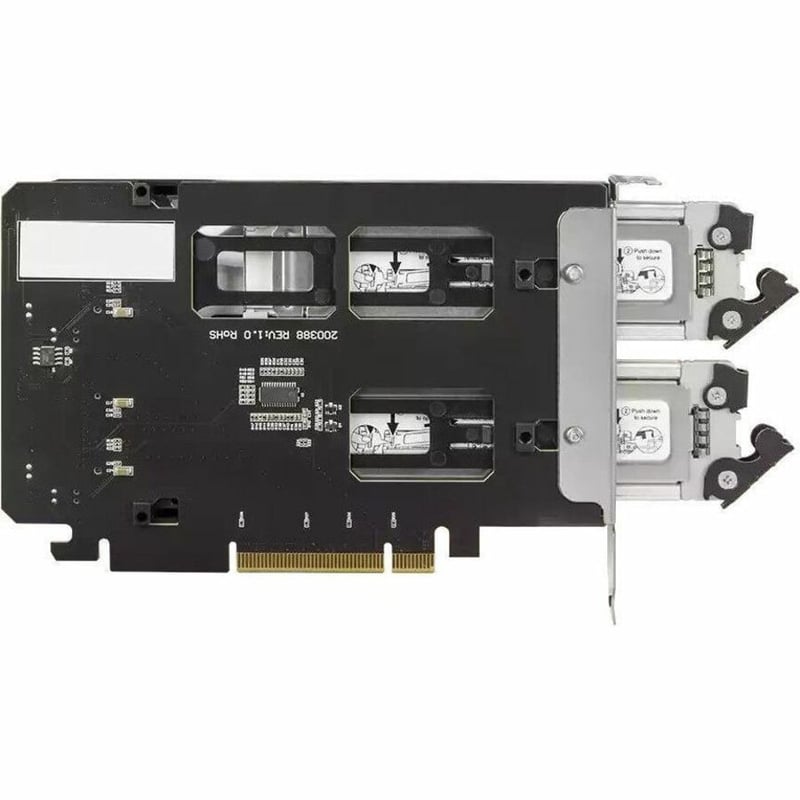

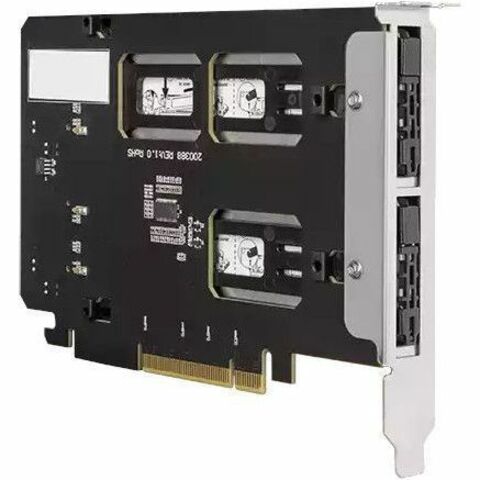

Icy Dock ToughArmor MB842MP-B Drive Enclosure PCI Express NVMe 4.0 - PCI Express 4.0 x8 Host Interface Internal - Black, Silver

The ToughArmor MB842MP-B turns a PCIe 8x or 16x expansion slot into a dual removable M.2 NVMe drive bays, allowing you to swap the M.2 NVMe SSDs without needing to open the computer case.

Innovative Removable M.2 NVMe SSD Enclosure

A typical M.2 drive is installed on a motherboard or a riser card and is secured by a small screw. Additionally, the physical installation process is very troublesome and time-consuming. The ToughArmor MB842MP-B's removable drive tray design utilizes the PCI express slot to make the M.2 SSD installation and removal process completely hassle-free.

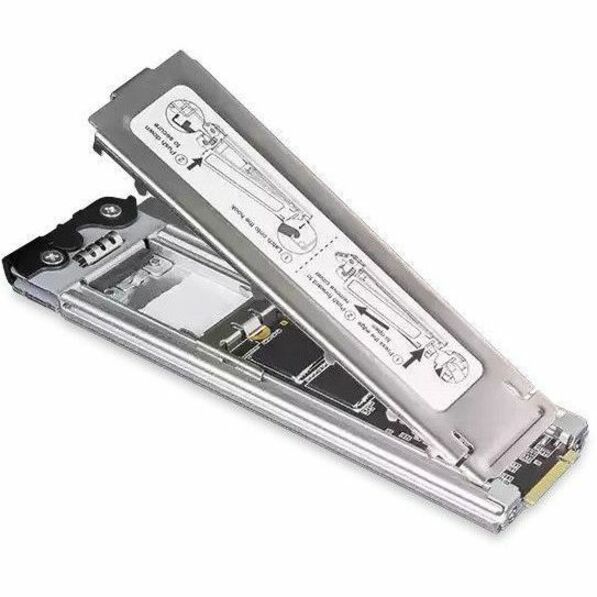

State of the Art Tool-less M.2 Drive Installation

The tool-less M.2 NVMe SSD installation design takes less than five seconds to complete, saving you the hassle of dealing with tiny easy-to-lose screws.

The patent-pending adjustable M.2 locker secures the M.2 NVMe SSD (2230, 2243, 2260, 2280, 22110) onto the drive tray by sliding the M.2 locker towards the SSD to lock the M.2 SSD in place.

Optimal Cooling Efficiency

The specialized slim M.2 drive tray is made of thick aluminum and acts as a heatsink to dissipate heat generated by the M.2 NVMe SSD.

The included thermal pad fills the gap between the contact surface and transfers heat away from M.2 NVMe SSD to the larger aluminum surface, allowing airflow to move the heat away quickly.

EMI Grounding Technology

Grounding your M.2 NVMe SSD is critical, especially during frequent drive swaps due to static shocks. Our adjustable M.2 locker will clip into the SSD screw hole and ground the drive throughout the tray and the enclosure.

Maximum Compatibility

The ToughArmor MB842MP-B is designed for the PCIe slot and is compatible with PCIe 3.0/4.0 x8 and x16 slots.

Superior PCIe 4.0 Performance

The advantage of utilizing the PCIe 3.0/4.0 interface is that it provides power and data through a single PCIe slot, reducing the system's cable clutter. In addition, the blazing-fast 64Gbps transfer speed is 10x faster than SATA III, making it an ideal solution for data-intensive applications such as machine learning, cloud computing, data mining, or even image processing.

Rugged Protection for the Harshest Environments

The ToughArmor MB842MP-B is equipped with solid plastic, metal housing, and full metal drive trays to ensure a long product life and comes with a 5-year warranty.

Packed with Features

The ToughArmor MB842MP-B is built with drive activity LED indicators on each drive tray to show the drive power and activities. The LED will automatically power off when no drive is detected to save energy.

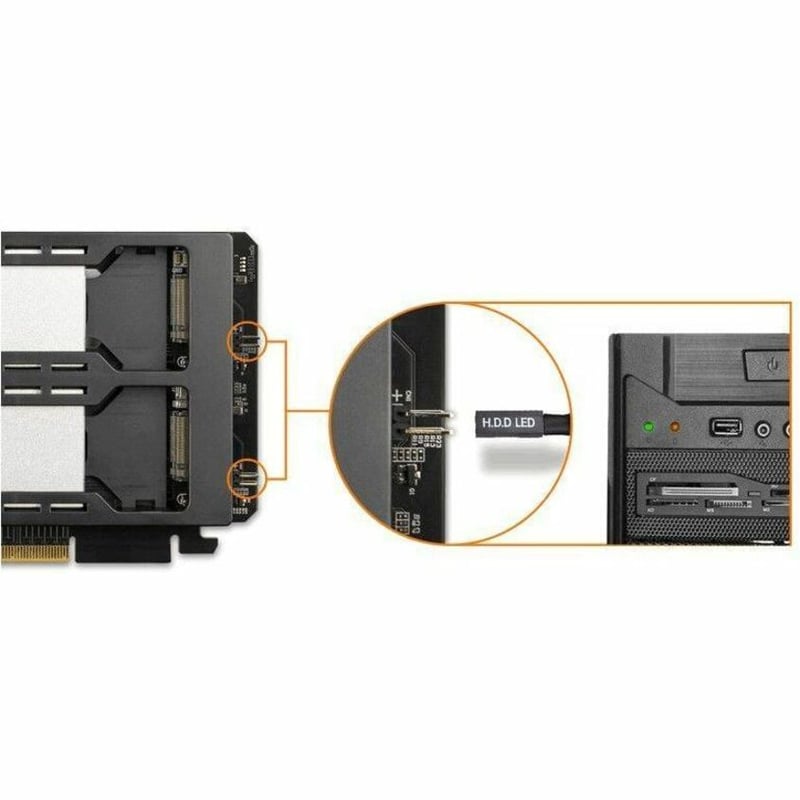

The optional 2-pin HDD activity signal output (cable is not included) allows you to transfer the drive activity signal to the computer case or LED panel and provide an alternative view at the desired location.

• Black
• Silver

• Metal
• ABS Plastic

• MB842MP-B Drive Enclosure
• User Manual
• Screw
• Thermal Pads

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
