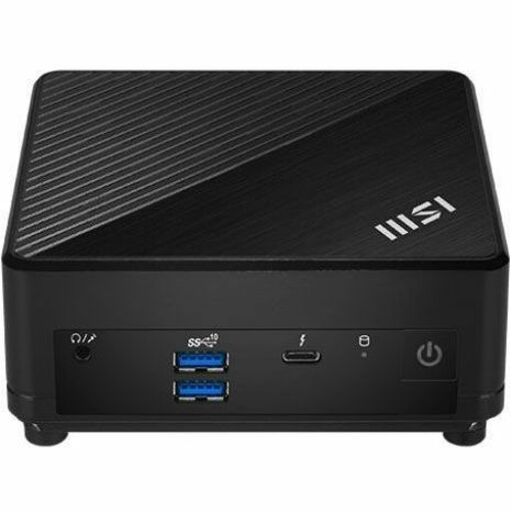

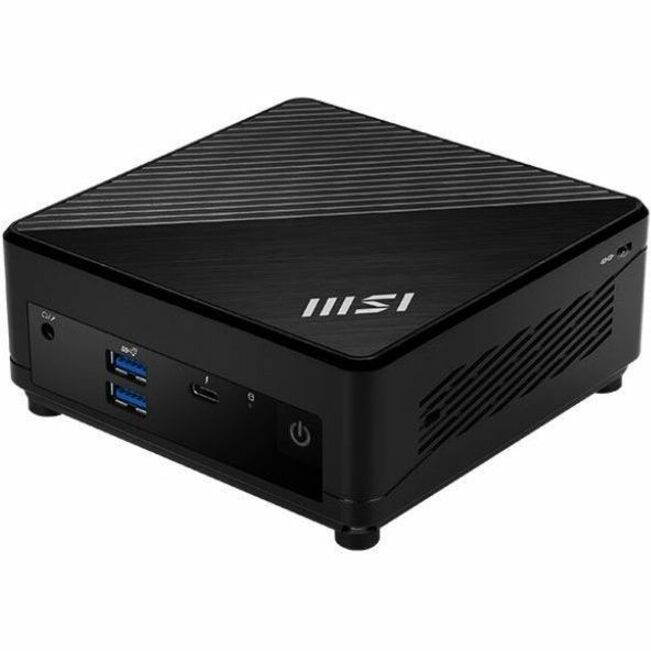

MSI Cubi 5 12M Cubi 5 12M-086BUS Barebone System - Mini PC - Intel Core i3 12th Gen i3-1215U Hexa-core (6 Core)

Name: MSI Cubi 5 12M Cubi 5 12M-086BUS Barebone System - Mini PC - Intel Core i3 12th Gen i3-1215U Hexa-core (6 Core)
Brand: MSI
SKU: HH1772
Price: 303.03 USD
Availability: InStock

MSI

PCN#

HH1772

MFG#

CUBI512M086B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$303.03

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

support up to 64 GB DDR4 SDRAM DDR4
2666/PC4
21333 Maximum RAM Support
2 Total Memory Slots
Intel Iris® Xe Graphics Graphic(s)
1 2.5" Bay(s)
IEEE 802.11ax
DisplayPort
Network (RJ
45)
1 M.2 Interface(s)
Gigabit Ethernet, 2.5 Gigabit Ethernet
65 W
3 Year Advanced replacement warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 3 lbs.

MSI Cubi 5 12M, NUC Mini PC Barebone, Intel Core i3-1215U, WiFi 6, BT 5.3, Dual LAN (not a fully configured system)

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	CUBI512M086B
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Line	Cubi 5 12M
Product Model	Cubi 5 12M-086BUS
Product Name	Cubi 5 12M-086BUS Barebone System
Marketing Information	Small But Powerful Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device. SUPPORT UP TO 8K RESOLUTION Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home. BOLT TO THE NEXT POWER Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device & NAS. Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
Product Type	Barebone System

Processor

Processor Manufacturer	Intel
Processor Type	Core i3
Processor Generation	12th Gen
Processor Model	i3-1215U
Processor Core	Hexa-core (6 Core)
64-bit Processing	Yes

Chipset

Chipset Manufacturer

Intel

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21333
Total Number of Memory Slots	2.0

Storage

Supported Storage Drive Types

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	Iris® Xe Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology	Gigabit Ethernet 2.5 Gigabit Ethernet
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ax

I/O Expansions

Number of Total Expansion Bays	1
Number of M.2 Interfaces	1

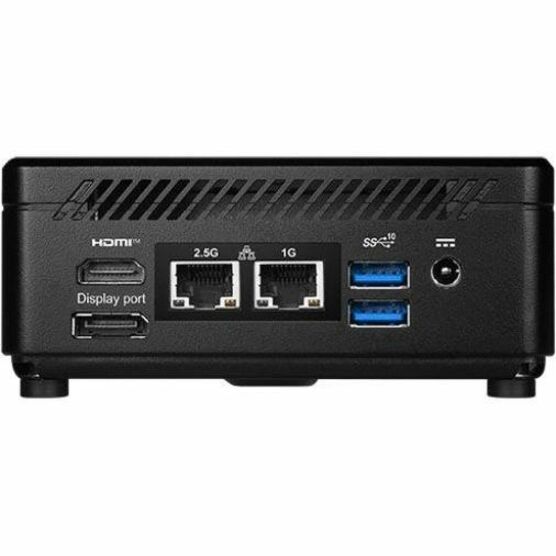

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	4
Number of USB 3.2 Gen 2 Ports	4
Network (RJ-45)	Yes
DisplayPort	Yes
Number of Thunderbolt 4 Ports	1
Number of DisplayPort Outputs (Rear)	1
DisplayPort (Rear)	Yes

Power Description

Maximum Power Supply Wattage

65 W

Physical Characteristics

Form Factor	Mini PC
Height	2.1"
Width	4.9"
Depth	4.9"
Weight (Approximate)	1.21 lb

Miscellaneous

Features	Security Slot
Environmentally Friendly	Yes
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

3 Year
