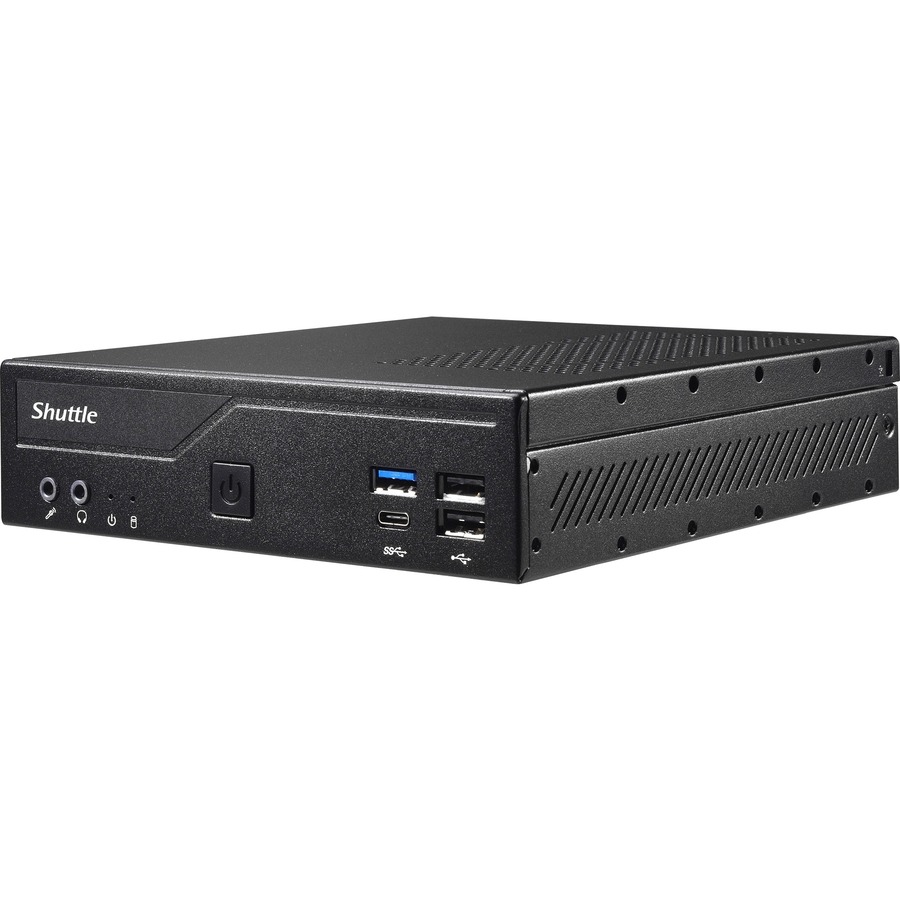

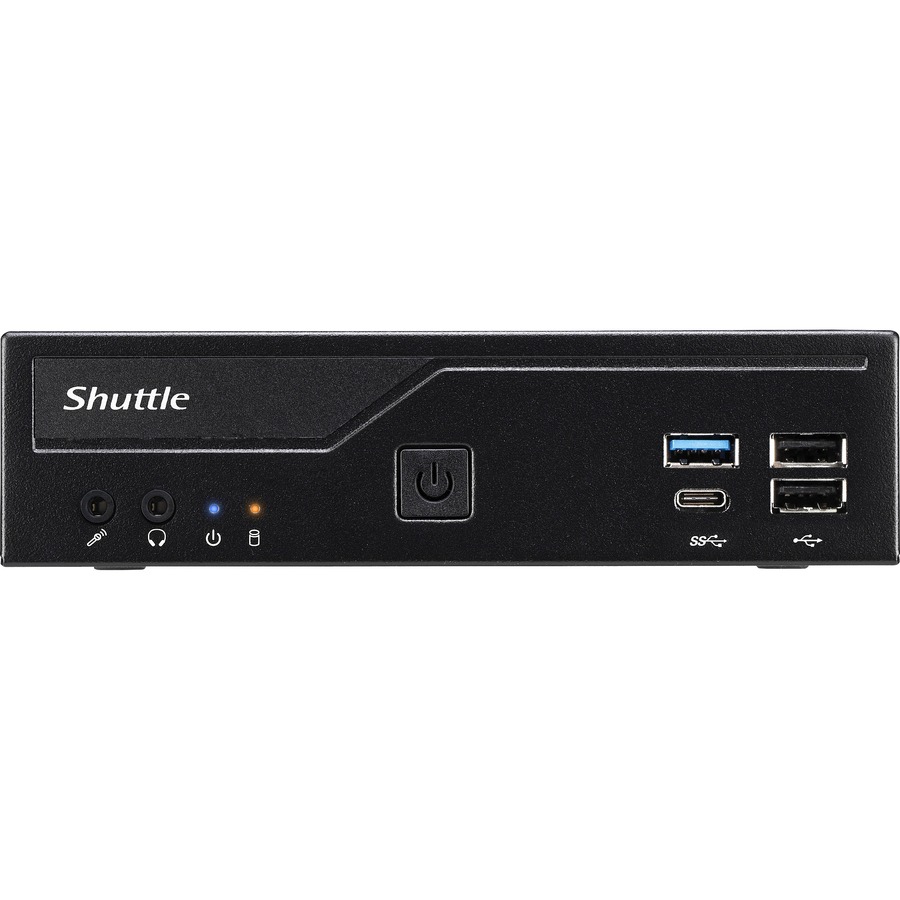

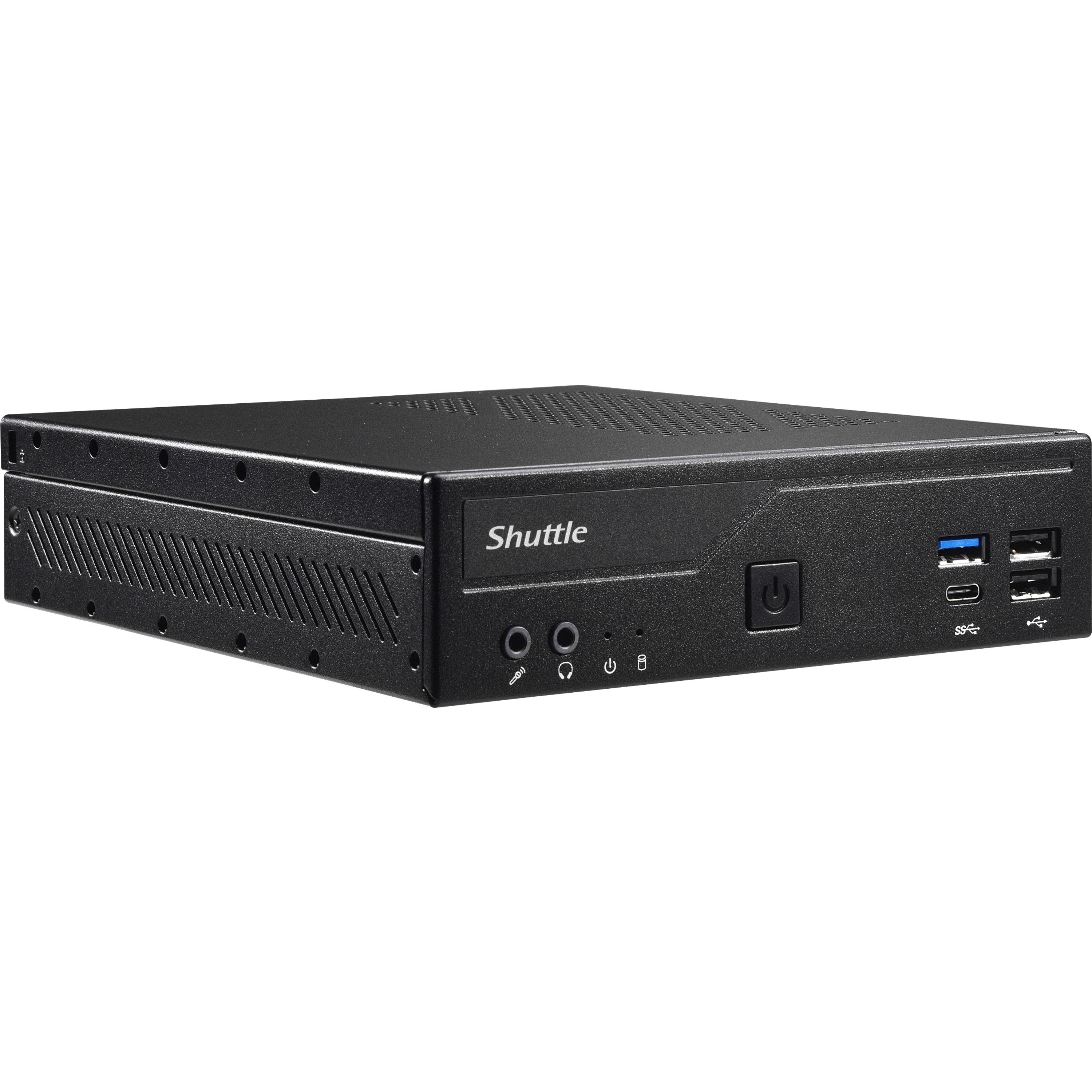

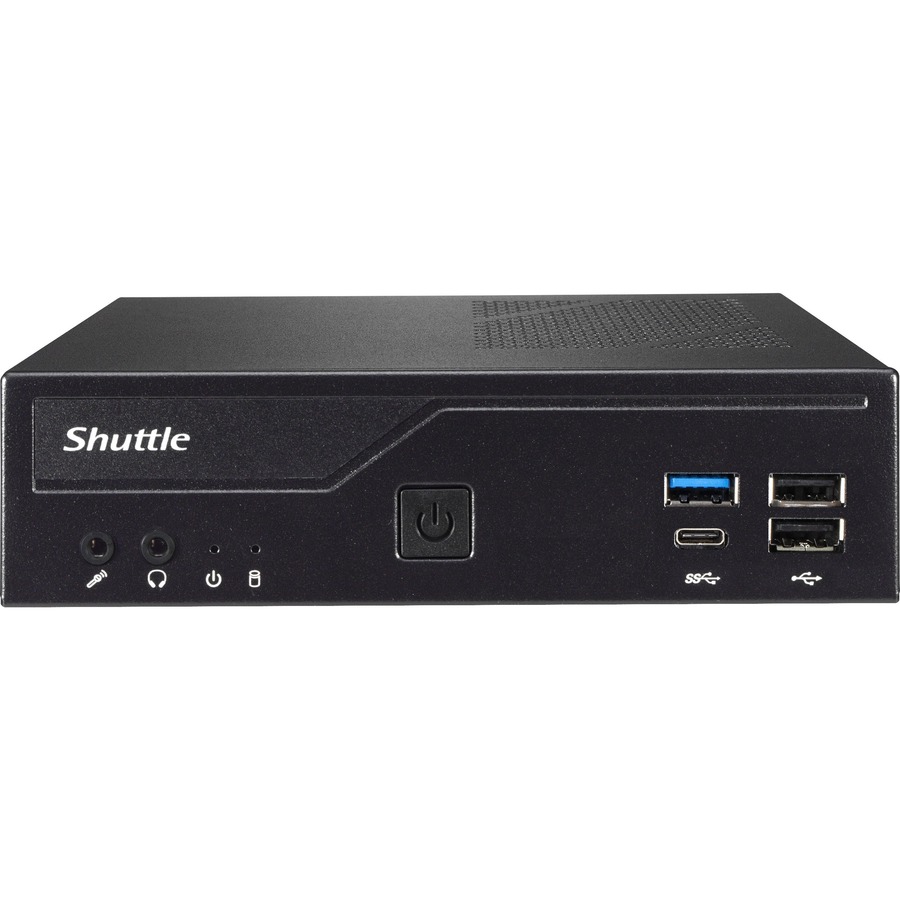

Shuttle XPC slim DH610 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support

Name: Shuttle XPC slim DH610 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support
Brand: SHUTTLE COMPUTER
SKU: 10HV42
Price: 383.21 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

10HV42

MFG#

DH610

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$383.21

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel H610 Chip
64 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
2.0 Total Memory Slots
Serial ATA/600 Controller
Intel HD Graphics Graphic(s)
Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron)
2.5 Gigabit Ethernet, Gigabit Ethernet
Windows 10 x64, Windows 11 x64, Linux Supported Operating System
3 USB 3.2 Gen 1 Port(s)
120 W

Product Condition: New and Factory Fresh

Shipping Weight: 7 lbs.

Shuttle XPC slim DH610 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	DH610
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC slim
Product Model	DH610
Product Name	XPC slim DH610 Barebone System
Marketing Information	Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displays The Shuttle XPC slim Barebone DH610 with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket LGA-1700
Processor Supported	Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron

Chipset

Chipset Manufacturer	Intel
Chipset Model	H610

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	2.0

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	HD Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

Interfaces/Ports

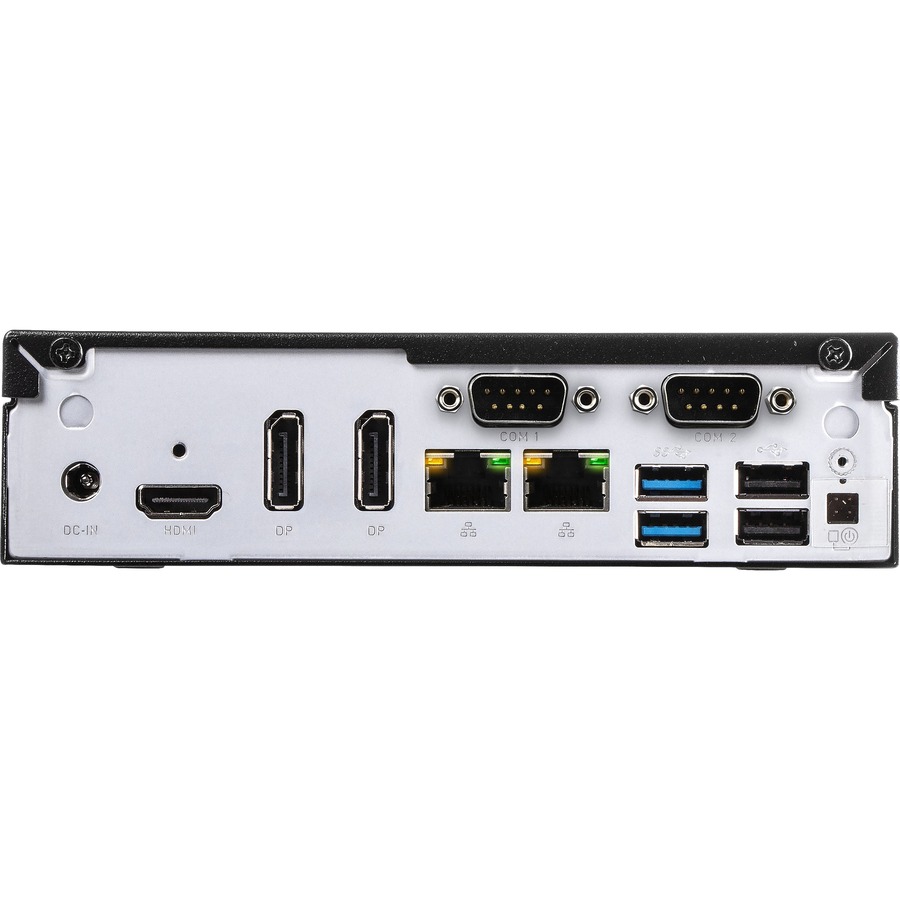

HDMI (Rear)	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	3
USB Type-C (Front)	Yes
USB Type-C Detail	1 x USB 3.2 Gen 1 Type-C

Operating System

Operating System Supported

Windows 10 x64
Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	120 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Slim PC
Height	1.7"
Width	6.5"
Depth	7.5"
Weight (Approximate)	2.87 lb

Miscellaneous

Package Contents	XPC slim DH610 Barebone System Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC) VESA Mount For 75/100 mm Standard (two metal brackets) 4 x Screws M3 x 5 mm (screws together VESA mount and PC) 4 x Screws M4 x 10 mm (to affix VESA mount on the PC) 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay) 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards) Driver DVD (Windows 64-bit) Serial ATA Cable For 2.5" Drive Including Power Cable External 120 W Power Adapter With Power Cord Protection Cap For CPU Socket (do not use if heatpipe or fan is mounted) Heatsink Compound
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
