Shuttle XPC slim XH610 Barebone System - Mini PC - Socket LGA-1700 - 1 x Processor Support

Name: Shuttle XPC slim XH610 Barebone System - Mini PC - Socket LGA-1700 - 1 x Processor Support
Brand: SHUTTLE COMPUTER
SKU: 10HV46
Price: 373.31 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

10HV46

MFG#

XH610

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$373.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel H610 Express Chip
64 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
2.0 Total Memory Slots
Serial ATA/600 Controller
3 SATA Interface(s)
Processor Support (Core i3, Core i5, Core i7, Core i9, Pentium, Celeron)
2.5 Gigabit Ethernet, Gigabit Ethernet
Windows 10 x64, Windows 11 x64, Linux Supported Operating System
3 USB 3.2 Gen 1 Port(s)
120 W

Product Condition: New and Factory Fresh

Shipping Weight: 8 lbs.

Shuttle XPC slim XH610 Barebone System - Mini PC - Socket LGA-1700 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	XH610
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC slim
Product Model	XH610
Product Name	XPC slim XH610 Barebone System
Marketing Information	Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5" HDD/SSD storage drives or one 3.5" HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket LGA-1700
Processor Supported	Core i3 Core i5 Core i7 Core i9 Pentium Celeron

Chipset

Chipset Manufacturer	Intel
Chipset Model	H610 Express

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	2.0

Controllers

Controller Type

Serial ATA/600

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

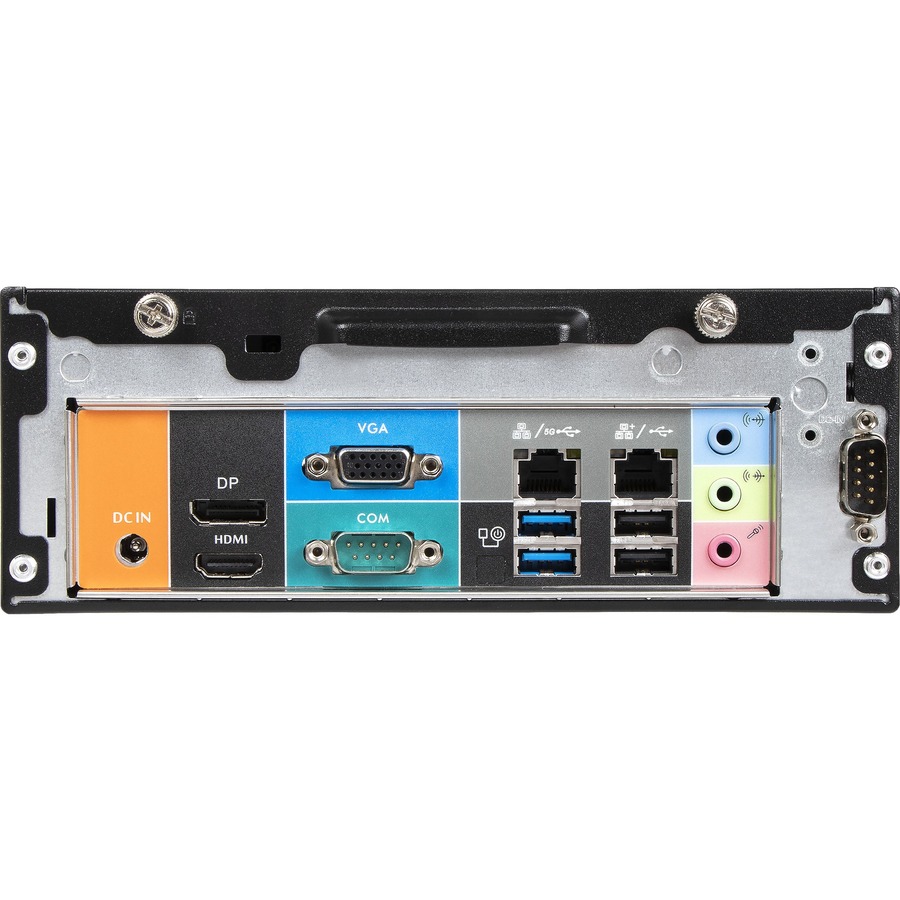

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	9
Number of USB 3.2 Gen 1 Ports	3
Number of Onboard USB 2.0 Ports	1
USB Type-C	Yes
USB Type-C (Front)	Yes
USB Type-C Detail	USB 3.2 Gen1 ports (Include Type C x 1)
Number of SATA Interfaces	3
Number of VGA Ports	1

Operating System

Operating System Supported

Windows 10 x64
Windows 11 x64
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	120 W

Physical Characteristics

Form Factor	Mini PC
Height	2.8"
Width	7.9"
Depth	9.4"

Miscellaneous

Package Contents

XPC slim XH610 Barebone System
AC Adapter
