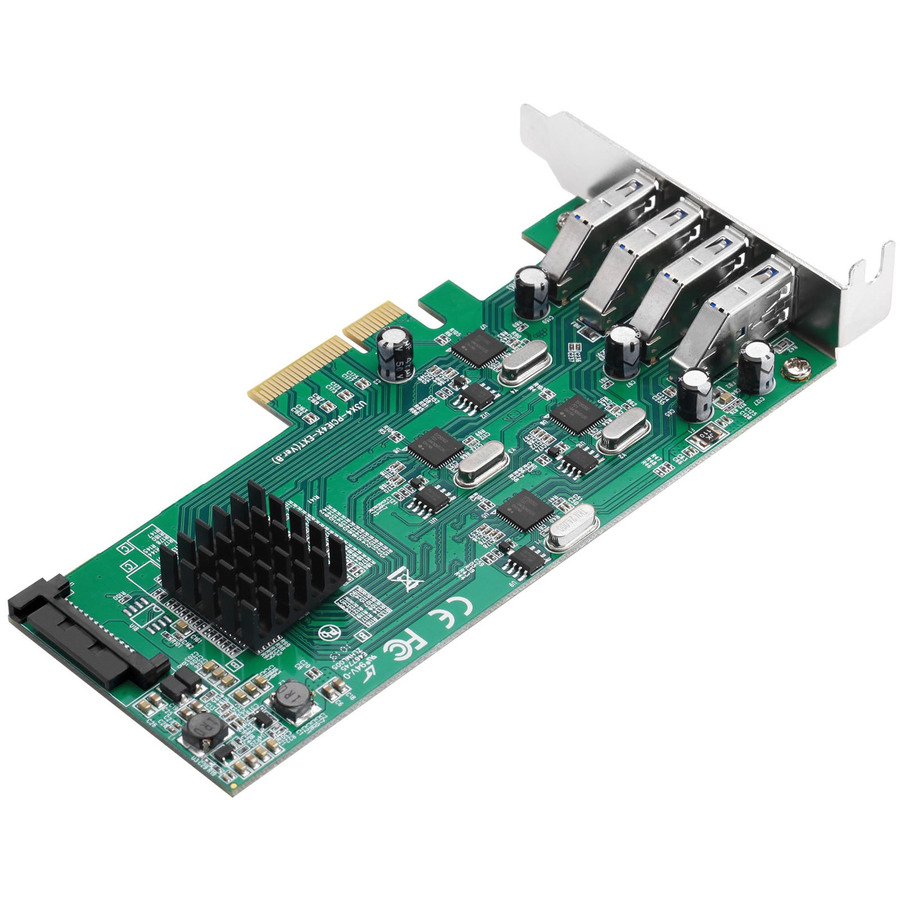

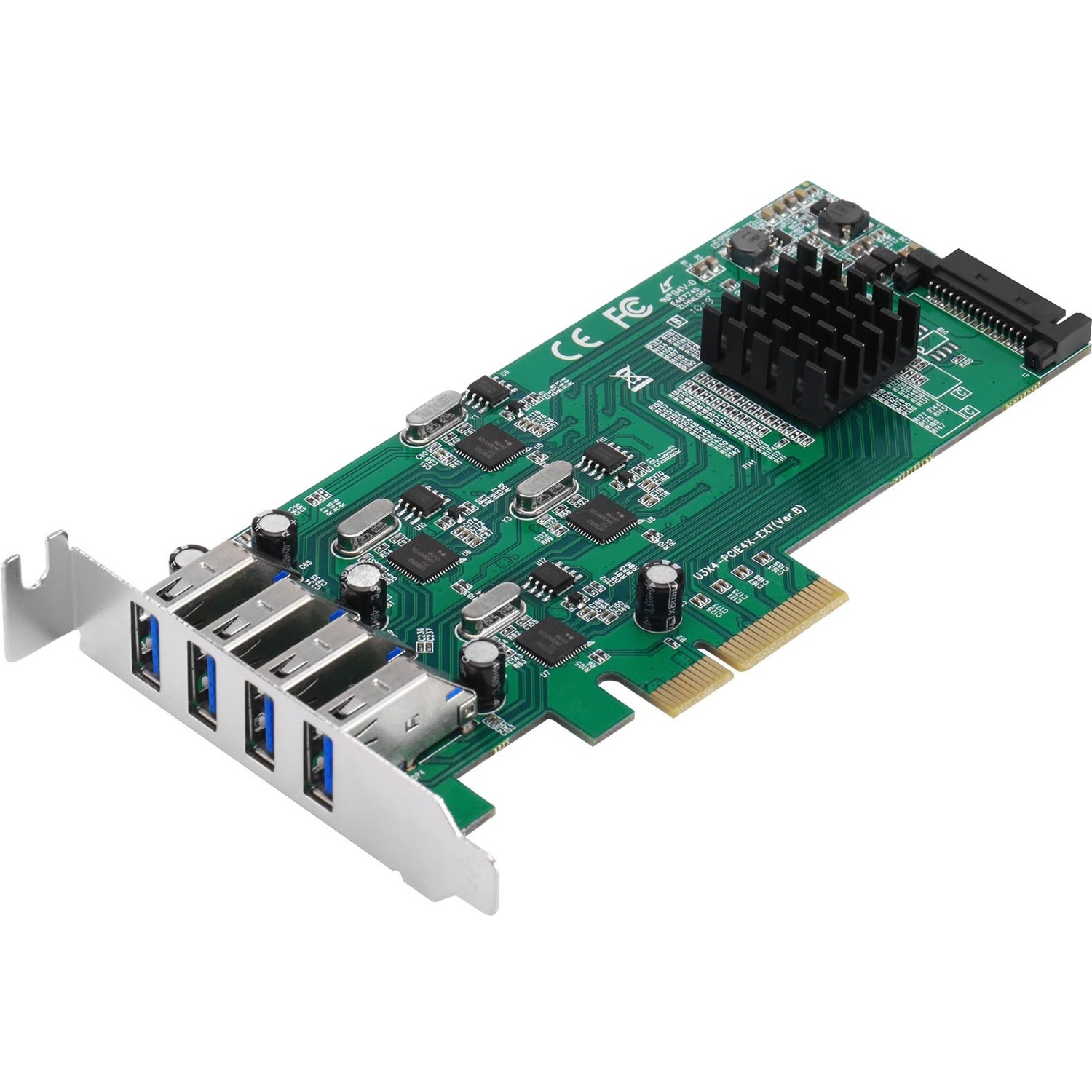

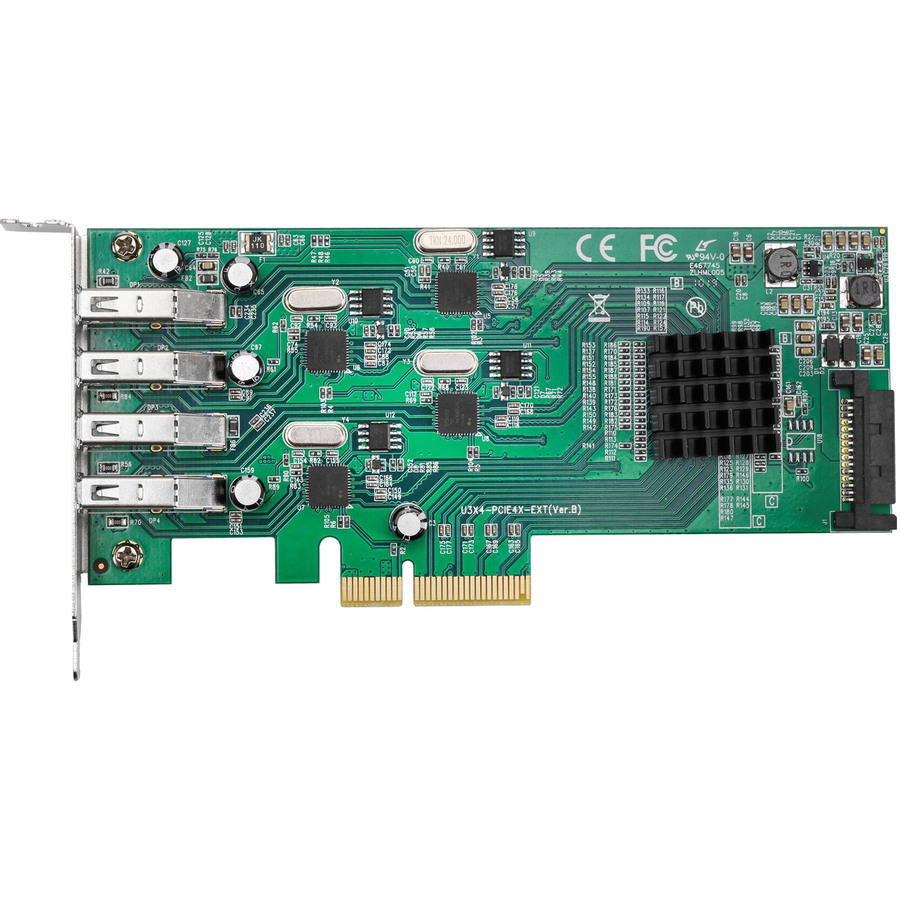

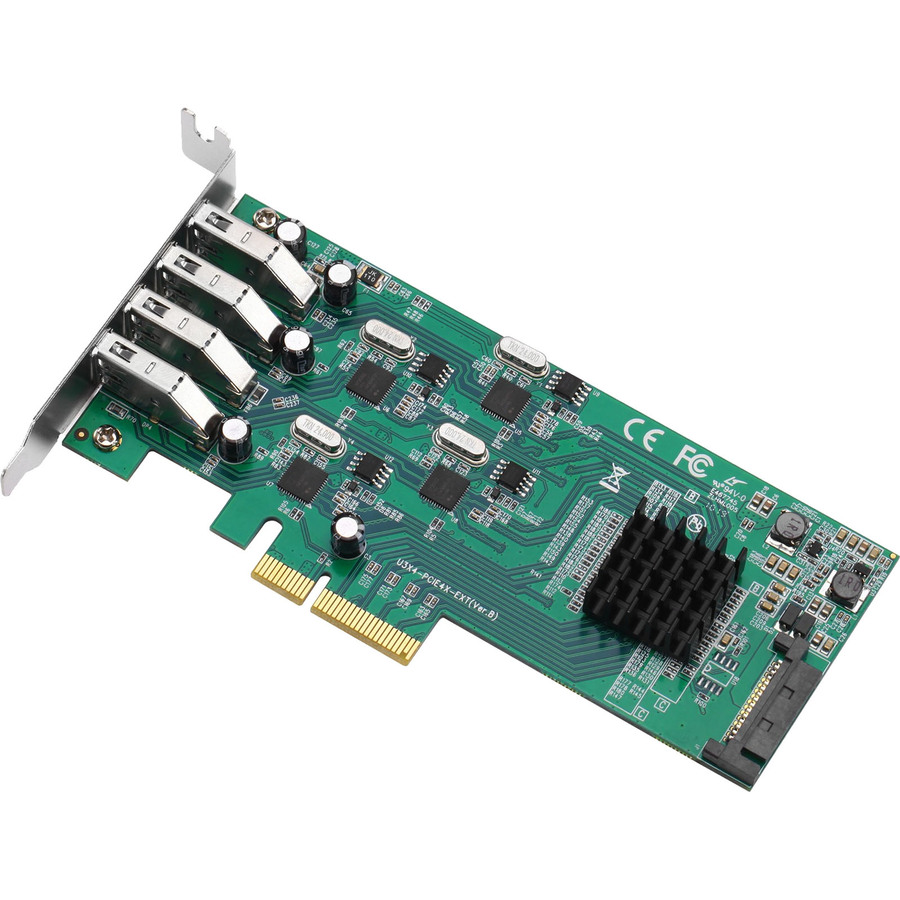

SIIG 4-Port USB 3.0 PCIe Card with 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - Quad Core 20Gbps - UASP - SATA Power - Low Profile PCIe Adapter Card

Name: SIIG 4-Port USB 3.0 PCIe Card with 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - Quad Core 20Gbps - UASP - SATA Power - Low Profile PCIe Adapter Card
Brand: SIIG
SKU: 8PW590
Price: 63.51 USD
Availability: InStock

SIIG

PCN#

8PW590

MFG#

JU-P40811-S1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$63.51

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

Add four USB 3.0 (Gen 2 Gen 1) ports with four independent channels
SATA power and charging support to your PC through a PCI Express slot
SuperSpeed USB 3.0 PCIe Add in Card (4x USB Type
A) with 5.0 Gbps each port
Support Windows 11/10/8/7 (JU
P40811
S1)
2 years warranty

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

SIIG 4-Port USB 3.0 PCIe Card with 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - Quad Core 20Gbps - UASP - SATA Power - Low Profile PCIe Adapter Card

Overview

Tech Specs

Specifications

Manufacturer	SIIG, Inc
Manufacturer Part Number	JU-P40811-S1
Manufacturer Website Address	http://www.siig.com
Brand Name	SIIG
Product Name	4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
Marketing Information	Adds four independent external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCI Express (PCIe) enabled desktop computer Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps Industry recognized high performance Renesas uPD720202 chipset Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps) Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0 Compliant with PCIe 2.0 standard Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only) Supports PCI Bus Power Management Interface Specification Revision 1.2 Low-profile bracket design fits lower size system form factor with included low profile bracket Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes
Product Type	USB Adapter

Technical Information

Host Interface

PCI Express 2.0 x4

Media & Performance

UASP Support

Yes

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	4

Physical Characteristics

Product Color	Green
Form Factor	Plug-in Card
Height	0.8"
Width	5.9"
Depth	3.2"
Weight (Approximate)	2.40 oz

Miscellaneous

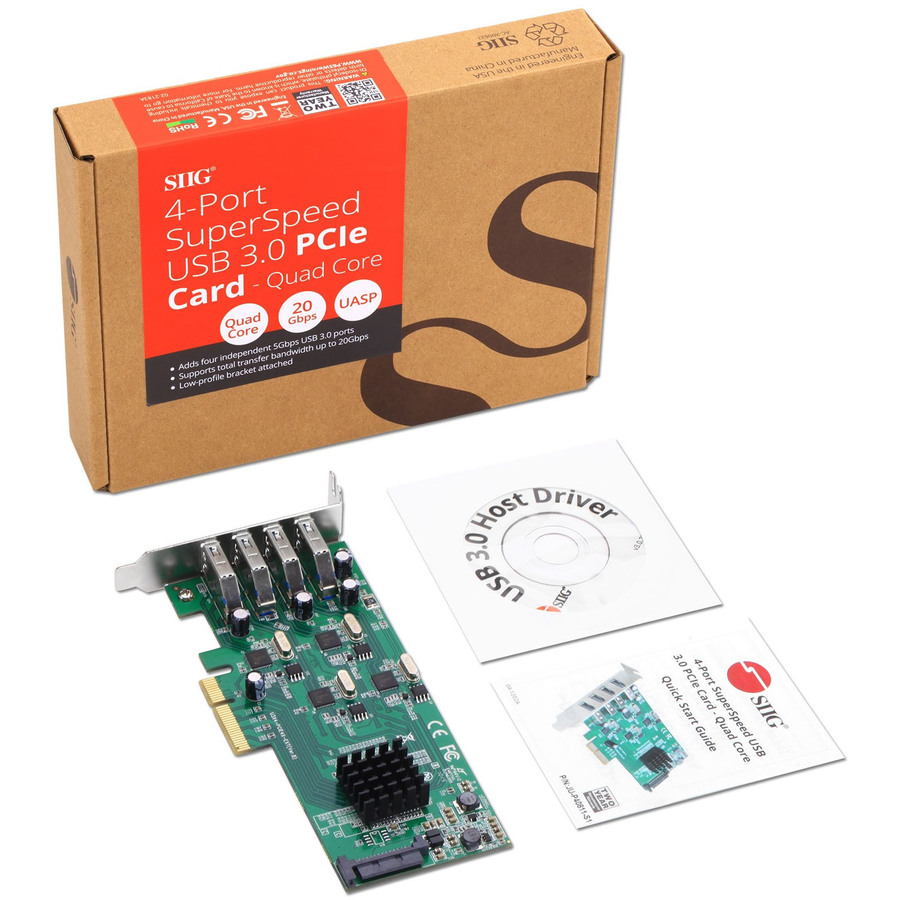

Package Contents	4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core Driver CD Quick Start Guide
Platform Supported	PC
Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

2 Year
