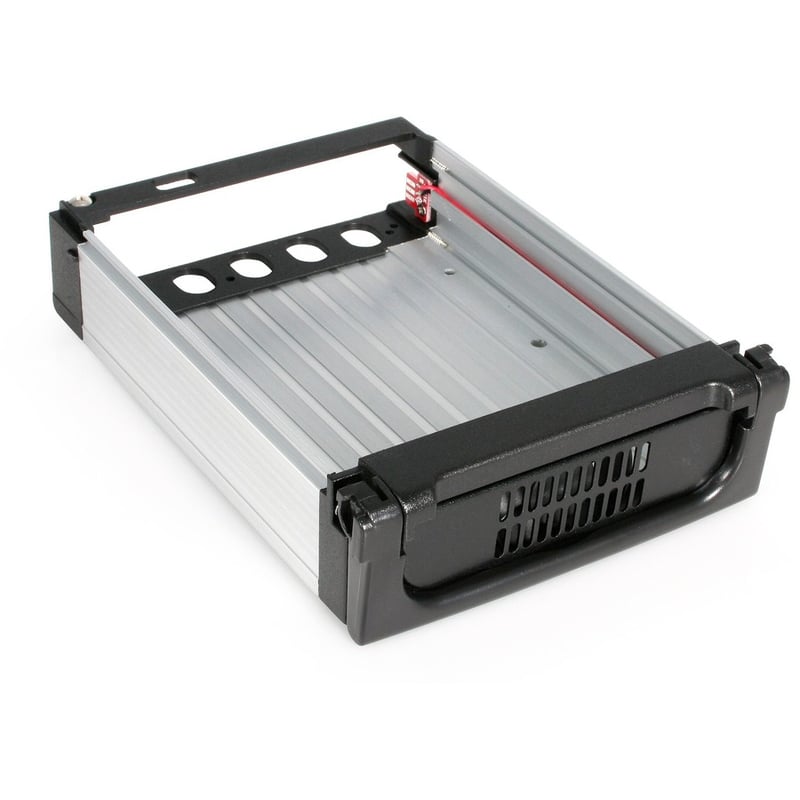

StarTech.com Aluminum Black SATA Hard Drive Drawer - Storage mobile rack - black

by
STARTECH
PCN#
D88892
MFG#
DRW150SATBK
$45.02
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Turns any 3.5in SATA hard drive into a rugged, hot
  • swap storage solution for a 5.25in bay
  • 3.5in sata mobile rack

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 2 lbs.
StarTech.com Aluminum Black SATA Hard Drive Drawer - Storage mobile rack - black
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

DRW150SATBK

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Model

DRW150SATBK

Product Name

5.25" Rugged SATA HDD Mobile Rack Drawer

Marketing Information

This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

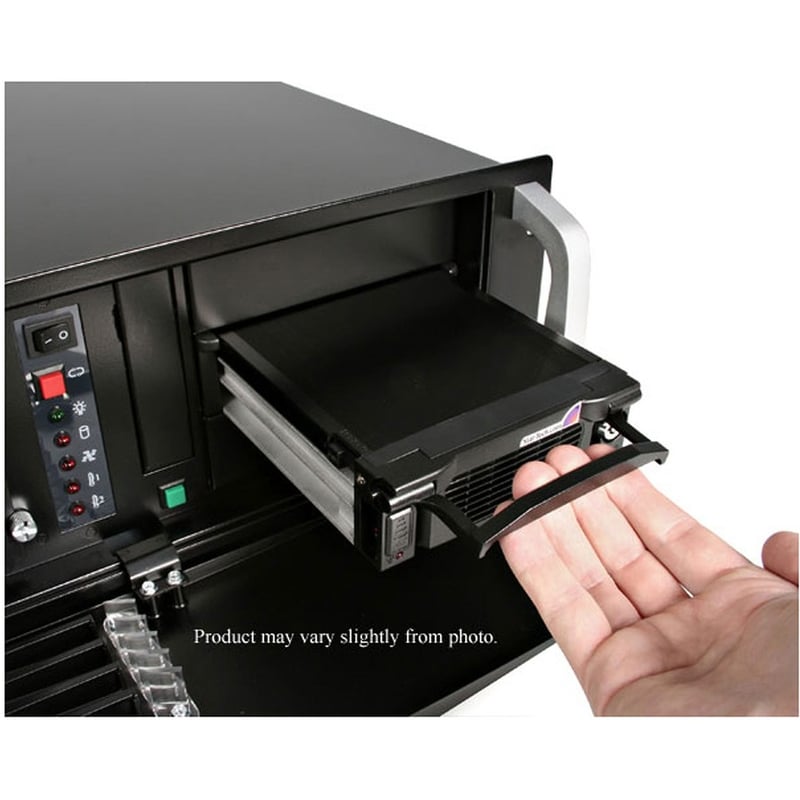

Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.

This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.

Packaged Quantity

1

Product Type

Drive Bay Adapter
Technical Information

Number of Hard Drives Supported

1

Number of Hard Drives Installed

No
Controllers

Controller Type

Serial ATA/600
I/O Expansions

Number of Total Expansion Bays

1

Number of 3.5" Bays

1
Network & Communication

Wireless LAN

No
Interfaces/Ports

Host Interface

Serial ATA/600
Physical Characteristics

Product Color

Black

Product Material

Aluminum

Cooling Fan

Yes

Form Factor

Internal

Compatible Drive Bay Width

5.25"

Height

1.6"

Width

5.8"

Depth

7.5"

Weight (Approximate)

1.72 lb
Miscellaneous

Package Contents

  • 1 x Mobile Rack Caddy
  • 1 x 5.25" Mobile Rack Bay
  • 1 x SATA Cable
  • 2 x Keys
  • 1 x Screw Kit
  • 1 x Instruction Manual

Additional Information

  • Mobile rack system makes removing/replacing drives quick and safe, while a key lock prevents unauthorized access to the drive
  • Solid aluminum construction, 40mm cooling fan and 25, 000+ insertion rating ensures durability and reliability from the Mobile Rack and the SATA drive
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

Platform Supported

  • PC
  • Mac

Environmentally Friendly

Yes

Country of Origin

China
Warranty

Limited Warranty

2 Year
