StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550

Name: StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550
Brand: STARTECH
SKU: DN9014
Price: 51.02 USD
Availability: InStock

STARTECH

PCN#

DN9014

MFG#

PEX2S553LP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$51.02

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

Add 2 high
speed RS
232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot
pci express serial card
pci
e serial card
pci express RS232
rs232 card
pci serial adapter

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

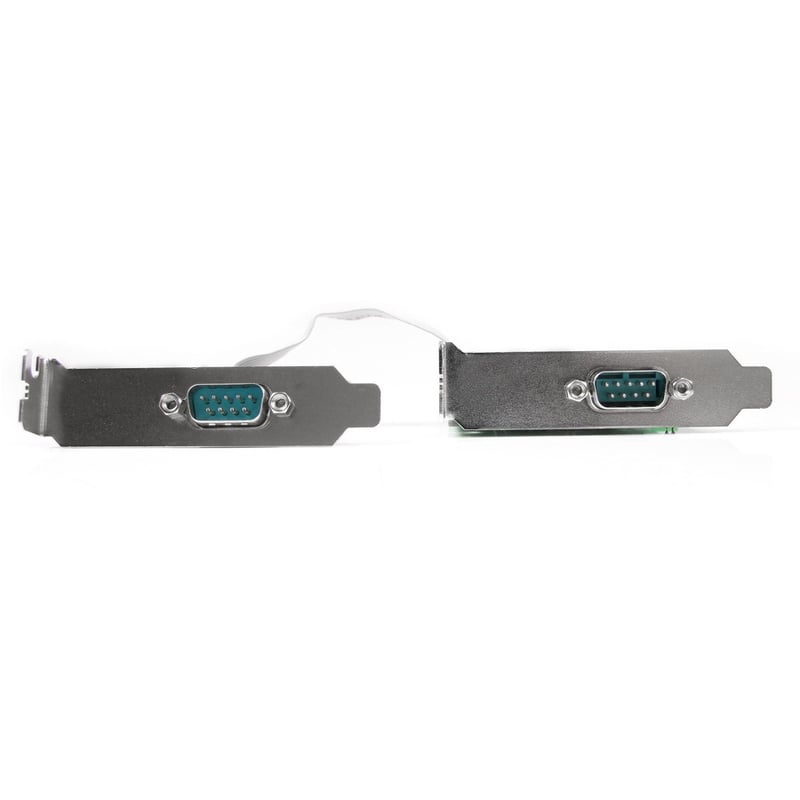

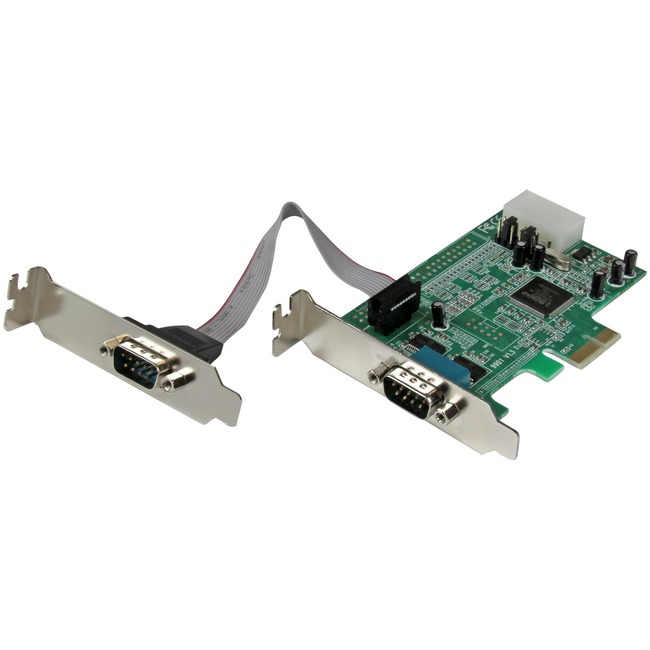

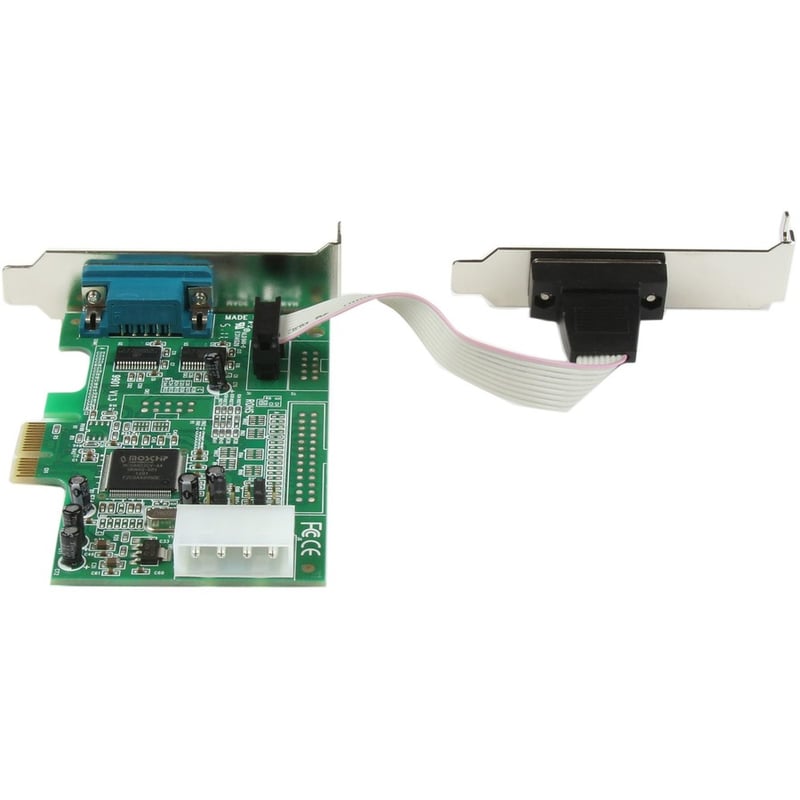

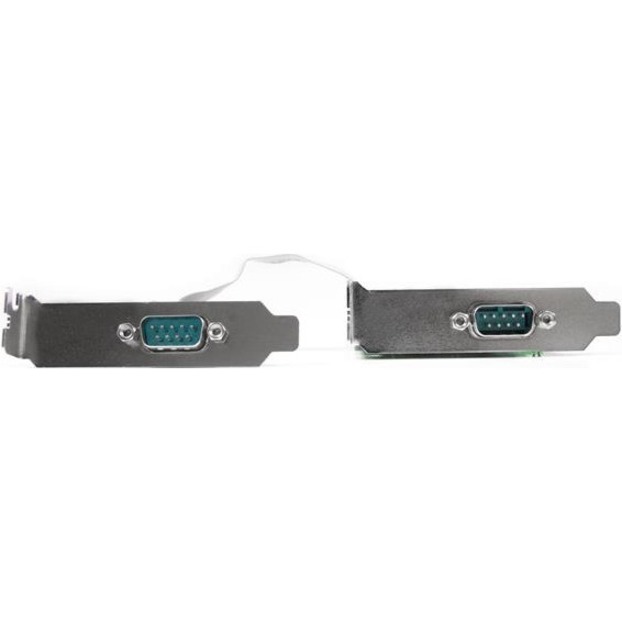

StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	PEX2S553LP
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
Marketing Information	The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor). This product is a replacement for our PEX2S552LP card. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity	1
Product Type	Serial Adapter

Technical Information

Host Interface	PCI Express x1
Data Transfer Rate	460kB/s
UART Type	16550
Platform Supported	PC Mac Linux

Interfaces/Ports

Number of Serial Ports (External)

Physical Characteristics

Form Factor	Plug-in Card
Card Height	Dual-profile
Height	0.8"
Width	3.1"
Length	4.1"
Weight (Approximate)	2.20 oz

Miscellaneous

Package Contents	2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART DB9 Ribbon Cable Full Profile Bracket Low profile Bracket Driver CD Instruction Manual
Additional Information	Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance. Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility. Easy to install and use with full step-by-step instructions saves time and hassle.
Environmentally Friendly	Yes
Environmental Certification	RoHS REACH WEEE
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
